FULL HF Coverage, no tuner needed on most frequencies.
No long counterpoise, radials or feedline required.
Rugged weather-resistant 50-Ohm matching network.
Fast Setup and takedown.
Easy Storage/transport.
Stainless Hardware, UV resistant materials throughout.

End-Fed Horizontal Wires(EFHW) cover multiple bands with-out traps, stubs, or resonators.

End-fed radiators have the unique quality of resonating on the 1/2-wave fundamental frequency plus odd/even harmonics above!

Broad-band matching transformer at feed point lets the entire HF spectrum be yours! SWR is so low you may never need a tuner.

Get on the air! Just one high center or end support -- installation is fast for home, road, emergencies.

EFHWs install virtually any-where in minutes! Comes with a rugged insulated-wire radiator that prevents detuning when contacting limbs/branches. "No-snag" end insulator slides over branches and through foliage without hang-ups.

Toss your EFHW over a high limb for an inverted-V, raise the far end high for a powerful sloper, or even go vertical with an inverted-L. Dark jacketed wire is virtually invis-ible -- Don`t let antenna restric- tions keep you off the air!

It`s no secret that weather events are getting stronger -- the EFHW makes a great emergency back-up for your regular antenna.

Power ratings are in Watts PEP for SSB/CW modes, with 50% or less transmit time (ICAS). Each network designed and tested to ensure great performance in a wide range of operating conditions.

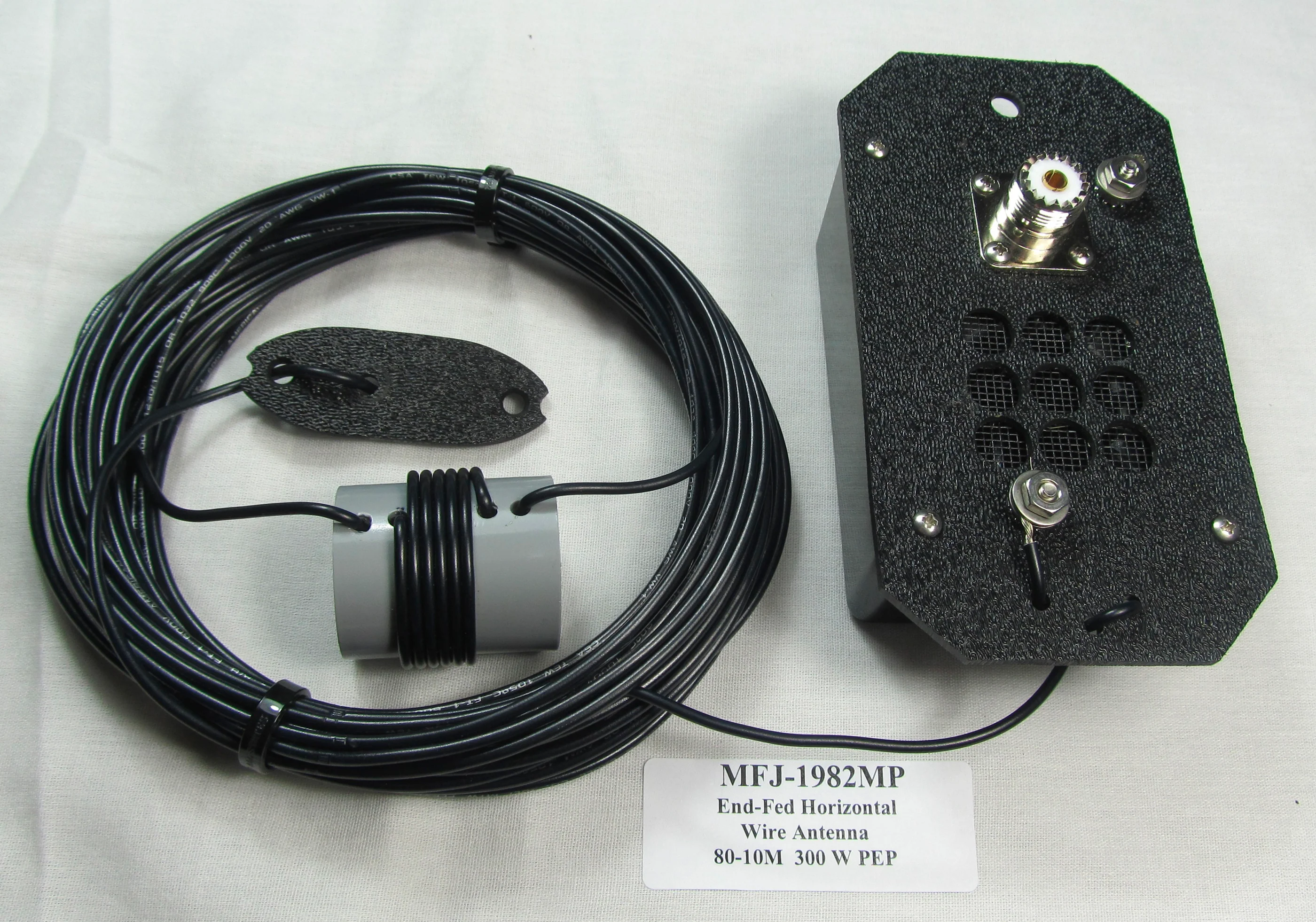

End-fed horizontal wire, an EFHW, offers the perfect solution for a wide range of ham activities.

Typical SWR, MFJ-1984LP

Band

Frequency/SWR

2:1 SWR Span

80M

3.65/1.1

3.5-3.9

40M

7.19/1.4

Full Band

30M

10.8/1.3

Tuner Required

20M

14.3/1.3

Full Band

17M

18.1/1.8

Full Band

15M

21.25/1.1

Full Band

12M

24.9/1.5

Full Band

10M

28.2/1.0

28.0-28.80

Product Manuals

Download Product Manual
