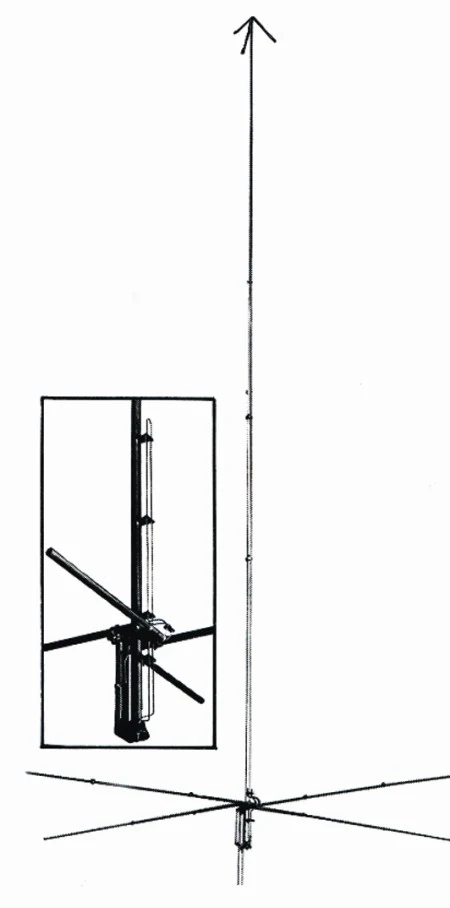

This fantastic true full-size 5/8 Wave 10 / 12 Meter vertical antenna from Hy-Gain was a legend in the 70’s . . . now it’s back to prove its legendary status once again! A Full-size radiator with lower radiation angle concentrates power closer to the ground, where you want it. Measures 22 foot, 9.5 inches. Larger diameter, heavy wall ply-tubular construction makes the new Super-Penetrator™ the absolute top omnidirectional antenna around! Four full-length radials and special machine-formed brackets give extra talk-power and overall strength. Electrical performance has been increased to a new standard by the use of a longer radiator and double-matching tuning with linear phasing techniques that provide low SWR and more radiated energy. The double-matching also provides a DC path to ground to drain off precipitation static, giving an extremely low noise antenna capable of high power. SPT-500 is specifically designed to accept AM-FM-SSB-DSB signals with low loss. Handles 1.5 killowatts. This antenna is illegal for 11 Meters use.

SPT-500 Antenna Specifications
Gain (dB)	5.3 dB
SWR (at resonance)	Less than 1.2:1
Nominal input impedance	52 Ohms
Lightning Protection	DC Ground
Height	Twenty-two feet, six inches
Radial Length	Eight feet nine inches
Wind (Survival)	80 MPH
Accepted mast size	1 ¼” to 1 ⅝” OD
